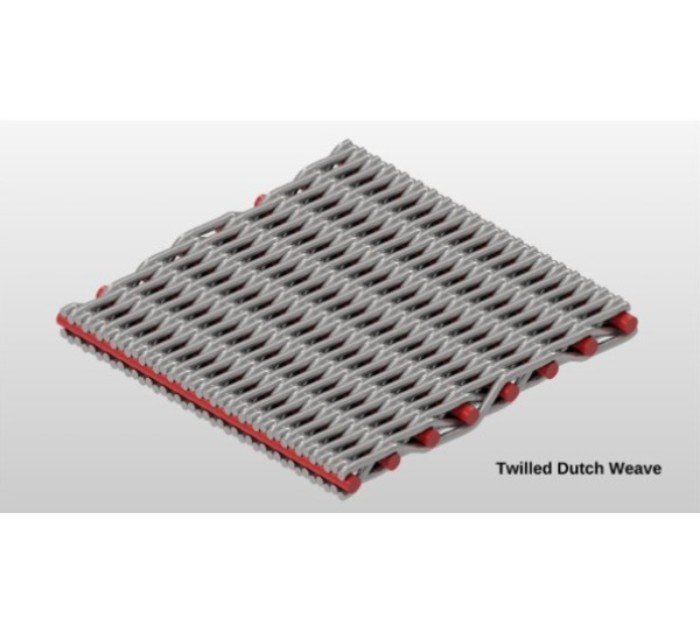

100 Micron Twilled Dutch Weave
To produce a 100 micron mesh screen with Twilled Dutch Micron Mesh, there are 18 warp wires and 330 chute wires. The smaller diameter of the chute wires mean that this weave is tight and has high filtration accuracy.
Specifications:
- 18 x 330 (Warp x Chute) wires per inch
- Wire Diameter Warp: 0.020 in. (0.500 mm)
- Wire Diameter Chute: 0.007 in. (0.180 mm)
- Porosity: 59%
- Overall Thickness: 0.046 in. (1.18 mm)
- Weight: 0.78 lbs./ft2 (3.80 kg./m2)
Metal Selections Available:
- Stainless Types: 304 (standard), 304L, 316, 316L, 321, 347, 430
- C1008 Low Carbon Steel
- Monel Alloy 400
- Inconel Alloy 600 or 601
- Nickel Alloy 200
- Nichrome 60% Nickel Alloy
- Inconel Alloy 800
Select Size:
Standard mesh screen roll widths are 36”, 48”, 60”, and 72”, however, we can provide your mesh in the width you require, down to a width of ¼”. We can also provide individual parts cut to size.
We can also offer:
- Laser cutting for curved shapes
- Stamped & formed parts
- Heat treating, cleaning, and coating
- Welding and other manufacturing processes
Other weave types to consider:
Dutch Twilled Weave Wire Mesh has a tight weave and has high filtration accuracy. but if you need other characteristics select 100 micron mesh in one of these other weaves:
- 100 micron Dutch Weave Wire Mesh: For good strength and cleanability
- 100 micron Reverse Dutch Weave Wire Mesh: For a stronger weave at higher pressure
- 100 micron Reverse Dutch Twilled Mesh: For less resistance but easier forming.
Why Gerard Daniel?
Gerard Daniel is a leading micron mesh manufacturer and supplier, holding one of the largest inventories in the world. Our quality is second to none – since we use much of our own wire mesh in our filtration and separation component assembly, we know what good quality is. Our Engineers work together with OEM and Tier 1 suppliers developing solutions with them, and we also supply distributors and other large micron mesh users.
Talk to a Sales Engineer about the best option for your application or Submit an RFQ.
See all micron mesh sizes in Twilled Dutch Weave Wire Mesh.
Frequently Asked Questions
Find answers to common questions about square/plain weave wire mesh.
Square weave wire mesh, also known as plain weave wire cloth, is woven by passing each warp wire alternately over and under each shute wire, creating uniform square openings. This classic weave pattern delivers excellent stability, consistent aperture size, and versatility for filtration, screening, and architectural applications.
Gerard Daniel offers several variations of plain weave mesh, including square plain mesh, square twilled mesh, market grade mesh, bolting cloth (tensile bolting cloth), and mill grade mesh. Each differs in wire diameter, mesh count, and open-area percentage to meet specific flow, strength, and precision needs.
Our square wire mesh is available in stainless steel (304, 304L, 316, 316L, 321, 347, 430), Monel®, Inconel®, Incoloy®, nickel, Aluminum, brass, bronze, and copper. We also carry low-carbon steel (C1008) and DFARS-compliant stainless alloys for government and aerospace applications.
In plain weave, each wire crosses over and under one wire at a time, providing stability and fine filtration control. In twilled weave, each wire passes over two and under two adjacent wires, producing a smoother surface and greater strength — ideal for applications under high mechanical stress.
Market grade square mesh is the most commonly used industrial wire cloth, offering a balanced combination of wire diameter and mesh count for general-purpose screening, sieving, and filtering in chemical, mining, food processing, and construction industries.
Tensile bolting cloth is a fine plain-weave mesh made from smaller wire diameters to achieve higher open area and precise particle control. It’s widely used in sifting, powder coating, and liquid filtration processes that require accurate separation.
Mill grade mesh bridges the gap between market grade and bolting cloth. It provides slightly higher open area for efficient separation, making it a preferred choice for dewatering, particle classification, and general screening operations.
We stock over 5,000 mesh types ranging from coarse openings (2 mesh) to fine meshes over 500 mesh. Most rolls are 48 inches wide and a hundred feet long, with custom widths, slit rolls, and laser-cut shapes available upon request.
Yes. If your specification isn’t in stock, we can weave custom mesh in any alloy, wire diameter, or mesh count to meet your filtration or architectural requirements. We also offer laser cutting, stamping, and slitting for made-to-order parts.
Every mesh roll is inspected for weave accuracy, wire diameter consistency, and open-area uniformity. As both a manufacturer and user of our own wire cloth in filtration and separation systems, we maintain strict quality control and repeatable performance standards across all mesh grades.
